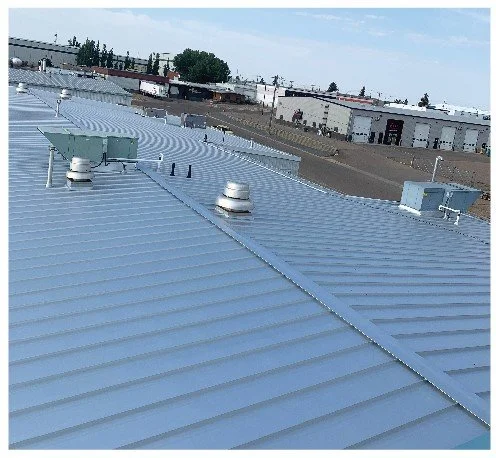

Standing Seam Roof

This is the mechanically seamed version which is still in place from well over 100 years ago in many applications in the east. This is available for retail sales or install in heavy 26ga and 24ga in every colour. Interlocking trims add a sleek look and add to the overall strength of this system with only a small hand full of exposed fasteners. This material is available for on site production as it is mobile. We also have two other profiles of steel cladding available in heavy 26ga and 24ga in all colours with the widest panels available at a 40” coverage making the install quicker, easier and more accurate with fewer joints. These panels are available in a very short period as we produce these in our shop with a digital line in any continuous length. These are also complimented with our unique interlocking trim designs.

  • All Gauges available but 26 and 24 gauge materials are the best bang for your buck

  • Labour once and never again

  • Mechanically seamed

  • Internal friction clip system

  • 24”, 20”, 16” and 12” panels available in any colour

  • Bottom of the panel has a 1” hook created to clamp out custom 8” roof edge which is screwed tight to the fascia board, while the top uses “bread pan” series folds to make is water tight

  • Steel vented ridge line

  • Includes our hooked notched trim system with open hems allowing left/right, male/female orders with seamless effects (*small handful of exposed fasteners with some trims)

  • Two stage snow and ice stop

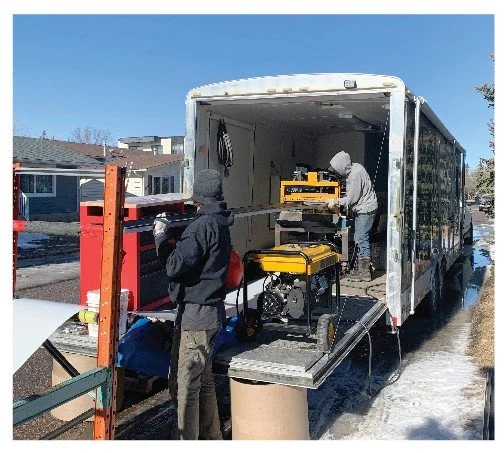

  • On site production available
